Coiled Tubing Surface Filter

FUNCTIONALITY

InterventionIntervention
Wellbore CleanoutWellbore Cleanout

DEPLOYMENT

Coiled Tubing
Jointed Pipe / Cable

SECTORS

Oil & Gas

The DTI CT Surface Filter is used to remove particles from circulating fluid, thus protecting downhole motors and other downhole tools that are sensitive to debris.

The DTI CT Surface Filter features an easily replaceable metal filter screen with standard filtration size of 600 microns. Other filtration sizes are available on request.

It is recommended to use the DTI Surface Filter to remove debris from pumped fluid and the Downhole Filter to filter debris from inside the CT.

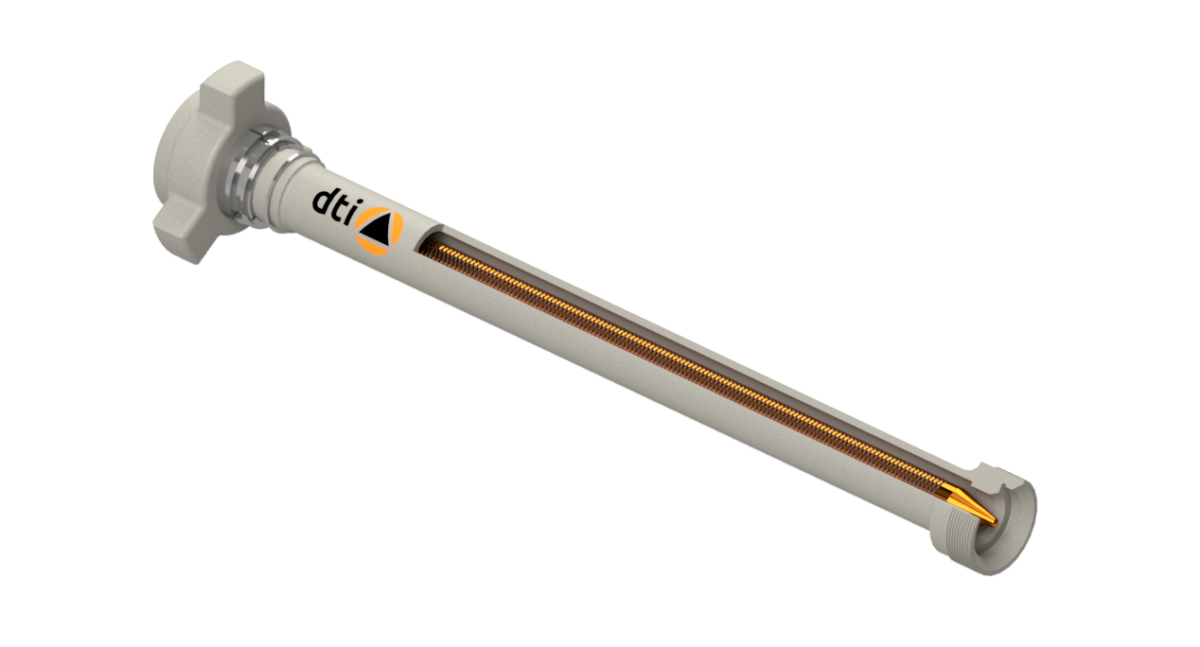

52130 1 Surface Filter
52130 1 Surface Filter

Features
& Benefits

  • Easily replaceable metal filter screen
  • 4ft length to reduce chances of the filter plugging
  • Different filtration size filter cartridges available
Part NumberUpper ConnectionLower ConnectionLengthFilter Size
52130-3002" 1502 WECO Female 2" 1502 WECO Male3ft300 micron
52130-4002" 1502 WECO Female2" 1502 WECO Male3ft400 micron
52130-5002" 1502 WECO Female2" 1502 WECO Male3ft500 micron
52130-6002" 1502 WECO Female2" 1502 WECO Male3ft600 micron

We offer optional equipment, alternative sizes, materials and thread connections. Please contact us for more information.

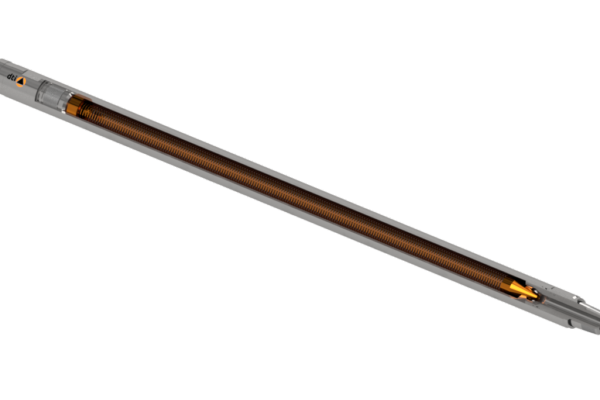

Downhole Filter
