Coiled Tubing Non-Rotating Fluted Centraliser

FUNCTIONALITY

InterventionIntervention

DEPLOYMENT

Coiled Tubing

SECTORS

Oil & Gas

The DTI Coiled Tubing Non-Rotating Fluted Centraliser is a full bore component that ensures that the CT tool string is fully centralised within the well tubing. O.D. is usually specially sized to tubing drift or to pass through nipple restrictions. Large fluted flow paths are incorporated into the O.D. to maximise fluid by pass and shoulders are fully beveled to prevent tool string hang up.

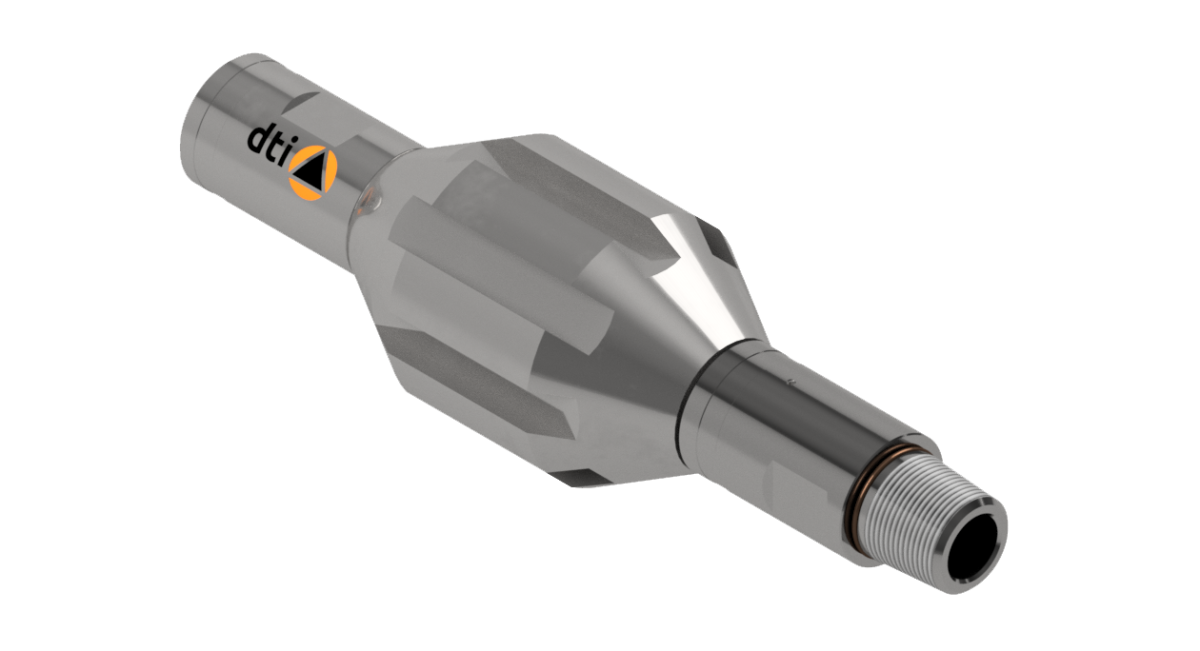

CFM288 AA23 588 Fluted Centraliser Mandrel Render
CFM288 AA23 588 Fluted Centraliser Mandrel Render
Part NumberOutside DiameterInside Diameter
CFM169**THREAD1.75 - 3.00"0.75"
CFM212**THREAD2.25 - 4.00"1.00"
CFM238**THREAD2.50 - 5.00"1.12"
CFM288**THREAD3.00 - 6.00"1.25"
CFM312**THREAD3.25 - 6.00"1.25"
CFM350**THREAD3.75 - 6.00"1.25"
