DTI AF Lock Running Tool

FUNCTIONALITY

InterventionIntervention
Flow ControlFlow Control

DEPLOYMENT

Wireline / Slickline

SECTORS

Oil & Gas

The DTI AF Running Tool is used to run and set DTI Lock Mandrels into their respective landing nipples on slickline.

The tool incorporates a lock ring to secure the running tool in the released position once the lock is set and a tell tale shear on in the core to give an positive indication that the lock is correctly set.

DOWNLOAD PRODUCT SHEET FOR DTI AF LOCK RUNNING TOOL

Download the file: DOWNLOAD PRODUCT SHEET FOR DTI AF LOCK RUNNING TOOL

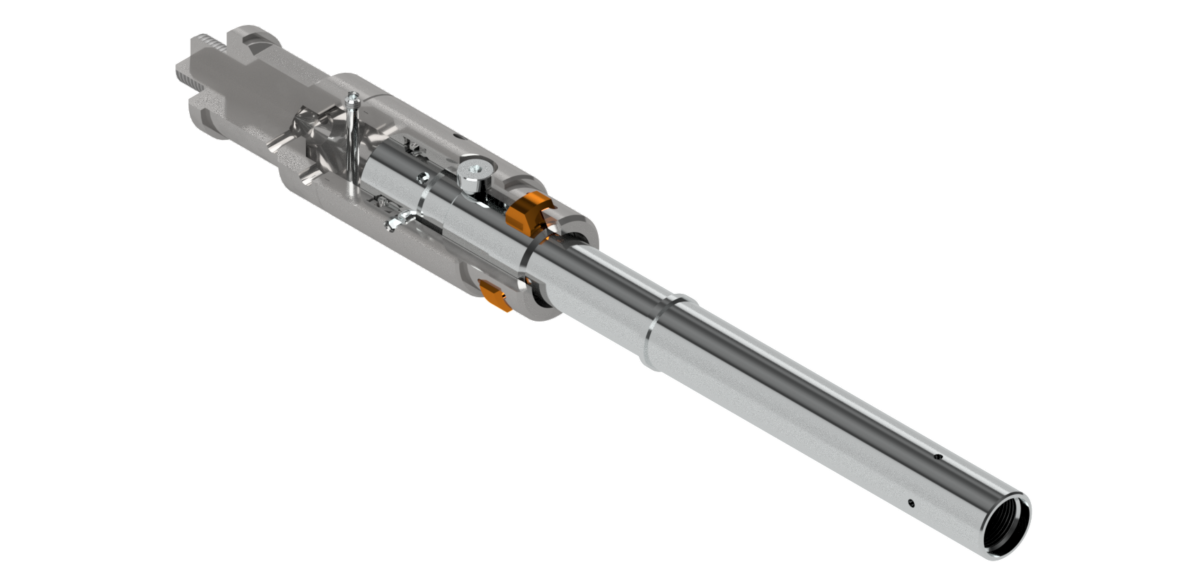

300 AFRT Running Tool
300 AFRT Running Tool

Features and Benefits

  • No springs in setting tool.
  • Engages generic GS profile
  • Robust construction.
  • Check set shear pin in core.
  • Flow activated versions of these tools are available.
  • Lower thread in core to suit any required running prongs.
Part NumberFish NeckStandard ThreadEngaging Fish NeckLower Connection
200AFRT1.375”15/16 UN1.38” (2” GS)1/2-13 UN
250AFRT1.750”15/16 UN1.81” (2 1/2” GS)5/8 -UNC
300AFRT2.313”1 1/16 UN2.31” (3” GS)1 1/4-12 UN

We offer optional equipment, alternative sizes, pressure ratings, materials and thread connections. Please contact us for more information.
