DTI Tubing Stop Gauge Hanger
FUNCTIONALITY
Intervention
Production Optimisation
Flow ControlDEPLOYMENT
Wireline / Slickline
SECTORS
Oil & Gas
Geothermal

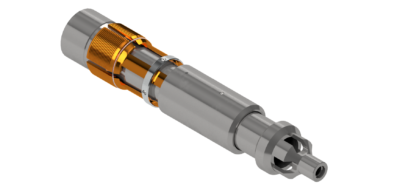

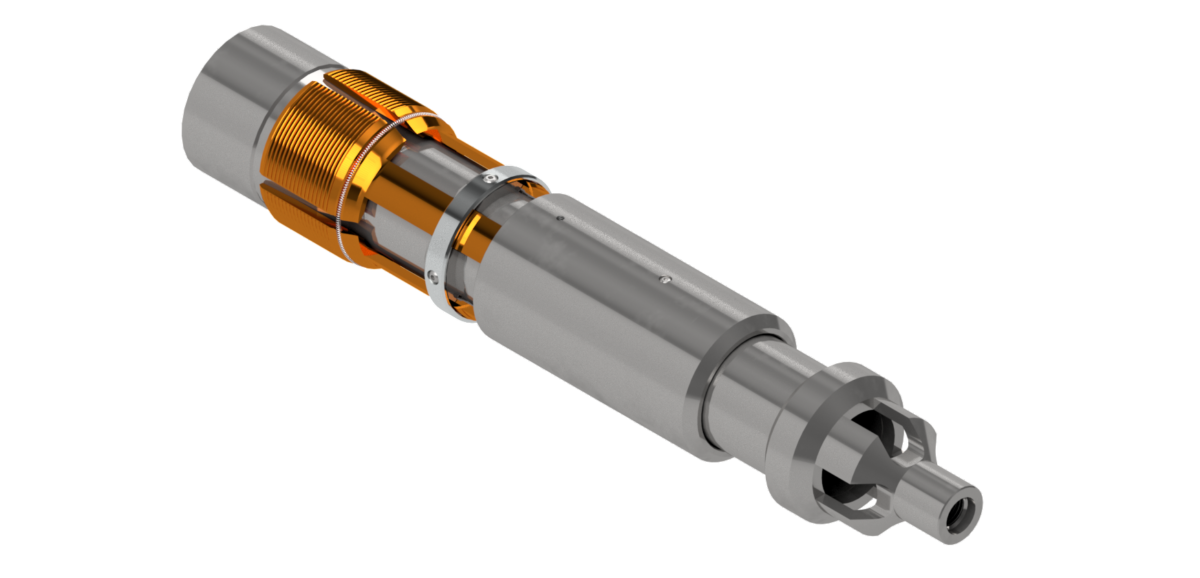

The DTI Tubing Stop Gauge Hanger is a wireline run anchoring devise that can be used to hang off instruments in the tubing string where there are no suitable locking profiles.
The DTI Tubing Stop Hanger comprises a central mandrel which incorporates an internal fishing neck looking up and a threaded ported hanger sub looking down, with a thread to suit the designated instrument.
The tool has an internal fish neck profile and is designed to be run and pulled in slickline with a standard GS pulling tool. Pulling is also carried out with a standard GS Pulling Tool and probe.
They lower thread connection is typically a 15/16-10UN thread however the tools can also be supplied with ¾” Amerada threads.
Features and Benefits
- Integral mandrel hanger design.
- Robust and durable slips.
- Sacrificial ratchet ring locking feature.
- Maximised flow area.
- Light weight.
- Can be run with a standard GS.
| Part Number | Tubing Size | Running OD | Fish Neck | Flow Area | Length |
|---|---|---|---|---|---|
| 238TSPHACU | 2 3/8” | 1.850” | 1.38” (2” GS) | 0.6in2 | 22.0” |
| 278TSPHACU | 2 7/8” | 2.250” | 1.81” (2 ½” GS) | 0.7in2 | 27.7” |
| 350TSPHACU | 3 ½” | 2.625” | 1.81” (2 ½” GS) | 1.5in2 | 24.7” |
| 350TSPHACU-1 | 3 ½” | 2.720” | 1.81” (2 ½” GS) | 1.5in2 | 24.7” |
| 450TSPHACU | 4 ½” | 3.750” | 3.12” (4” GS) | 4.4in2 | 24.7” |
| 450TSPHACU-1 | 4 ½” | 3.500” | 2.62” (3 ½” GS) | 4.4in2 | 24.7” |
| 500TSPHACU | 5” | 4.150” | 3.12” (4” GS) | 5.9in2 | 24.7” |
| 550TSPHACU | 5 ½” | 4.500” | 4.00” (5” GS) | 7.6 in2 | 24.7” |
