External Dimple Connector
FUNCTIONALITY
InterventionDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

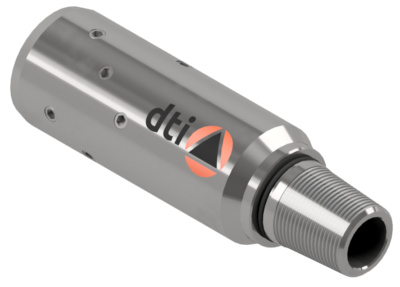

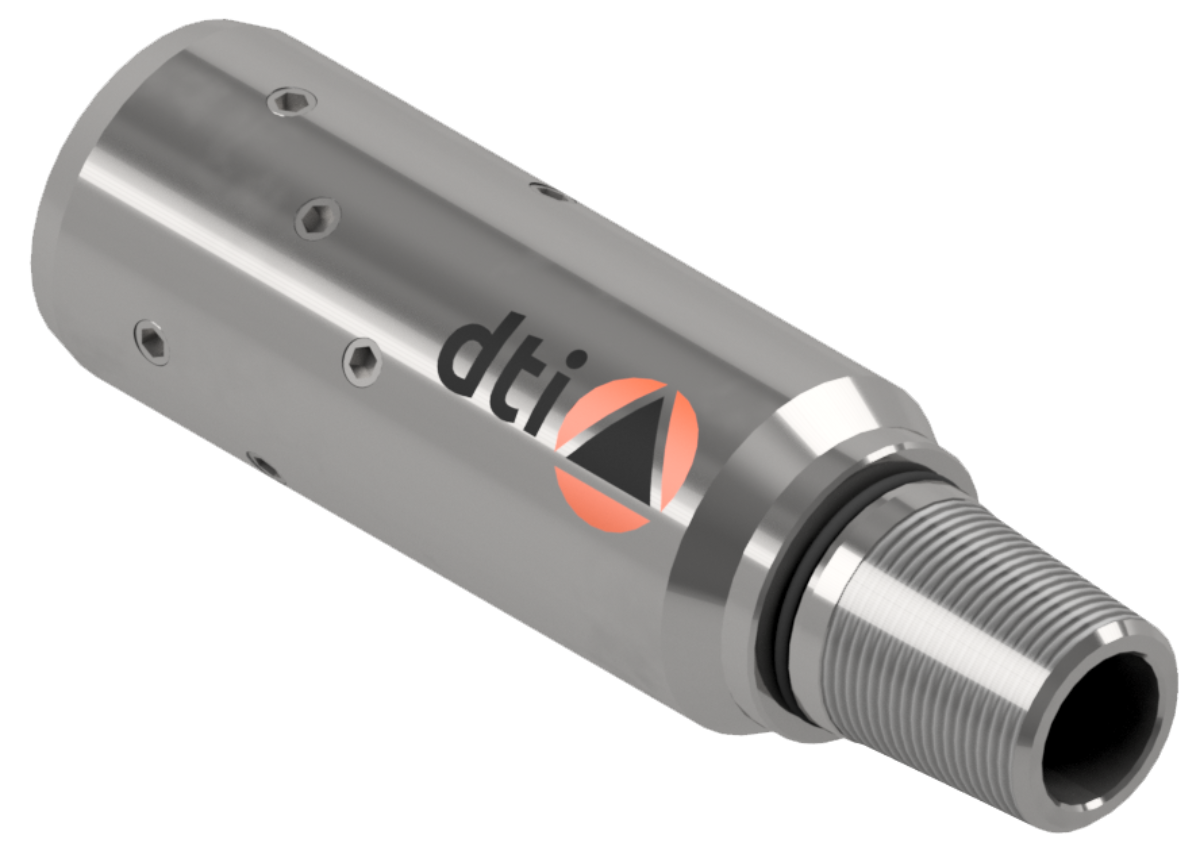

The DTI External Dimple Connector forms a full bore sealed joint between the outside of the coiled tubing and the coiled tubing tool string. A pattern of set screws in the body of the connector are locked into pre-formed dimples made on the outside of the coiled tubing using a DTI Dimple tool.
The dimples in the outside of the coiled tubing are formed using a Dimple On/Extractor Tool
This is a very strong connector capable of transmitting torque.
Features
& Benefits
- Spiralled dimple pattern with 12 dimple screws.
- Compact
- Double Viton O-Ring seals
- Strong torque through connection.
| PART NUMBER | OUTSIDE DIAMETER | COIL SIZE | MAKE-UP LENGTH | THREAD CONNECTION |
|---|---|---|---|---|
| DC125169AC08 | 1.688" | 1 1/4" | 7.25" | 1.00 AMMT |
| DC150212AC09 | 2.125" | 1 1/2" | 5.25" | 1.50 AMMT |
| DC175212AC09 | 2.125" | 1 3/4" | 5.25" | 1.50 AMMT |
| DC200288AC23 | 2.875" | 2" | 5.75" | 2.38 PAC |
| DC238288AC23 | 2.875" | 2 3/8" | 5.00" | 2.38 PAC |
| DC288350AC68 | 3.500" | 2 7/8" | 5.00" | 2.38 IF |
