High Flow Flapper Type Injection Valve

FUNCTIONALITY

InterventionIntervention
Flow ControlFlow Control

DEPLOYMENT

Wireline / Slickline
Coiled Tubing

SECTORS

Oil & Gas
CO₂, Hydrogen & Gas Storage
Geothermal

DTI's High Flow Flapper Type Injection Valve is run below a Lock Mandrel or a DTI Bridge Plug to enable fluids to be injected into the well at high flow rates whist providing a secure well barrier to pressure from below the valve.

Whilst pumping a large flow area minimises the pressure drop across the Injection valve. In addition, high strength coatings on internal components reduce erosion and greatly increase reliability and service intervals.

The Injection Valve is designed to be robust in construction and components are treated to withstand abrasive flow wear.

Download High Flow Flapper Type Injection Valve Product Sheet

Download the file: Download High Flow Flapper Type Injection Valve Product Sheet

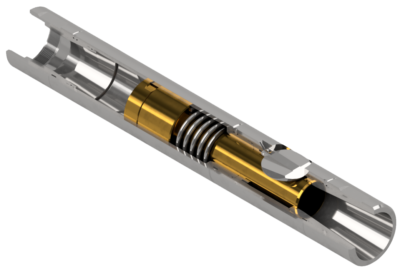

381 XAAIV 1 RENDER

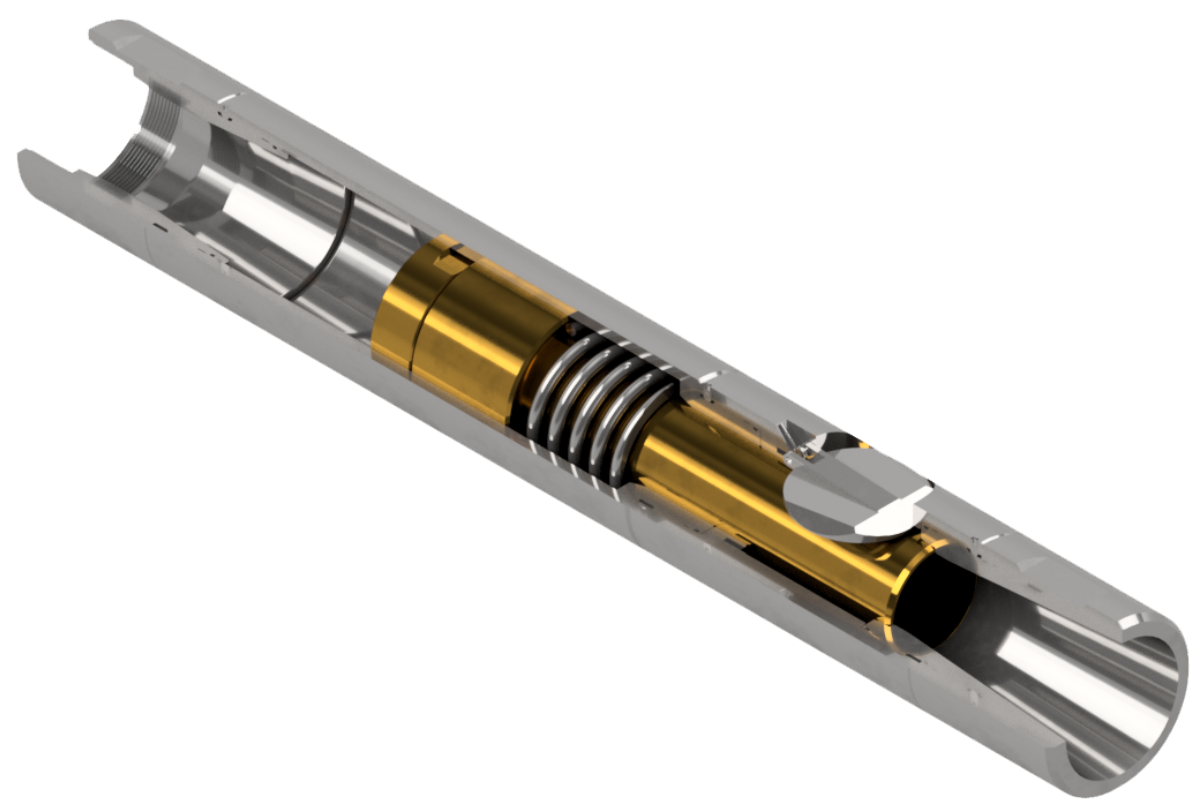

381 XAAIV 1 RENDER

Features and Benefits

  • Large flow area minimises pressure drop across the valve.
  • Robust construction
  • Can be choked to alter flow area and opening pressure.
  • Versatile design can be adapted for use with multiple lock mandrel types.
Part NumberOutside DiameterUpper ConnectionFlow Through AreaLength
381XIAAV-13.61"3.06-12 SLB2.76in225.75"
