PermaSeal Coiled Tubing Barrier
FUNCTIONALITY
Intervention
Artificial Lift
Flow ControlDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas
CO₂, Hydrogen & Gas Storage
Geothermal

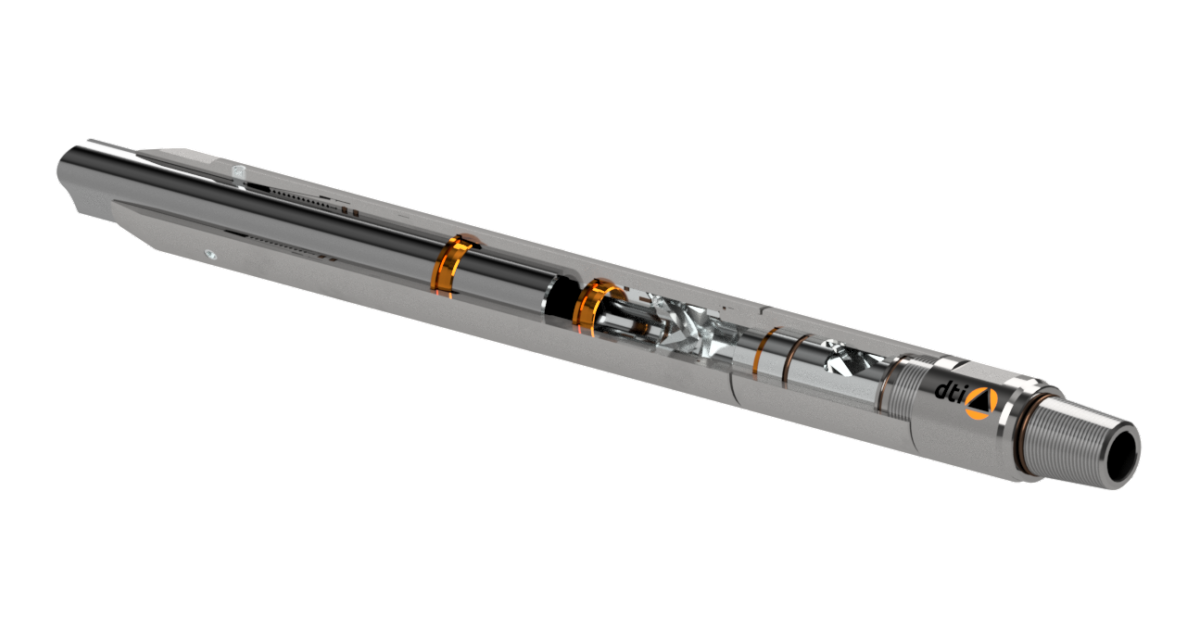

The DTI PermaSeal CT Barrier combines uses DTI's patented PermaSeal technology , combining the DTI PermaSeal Coiled Tubing Connector with a PermaSeal Twin Flapper Check Valve to provide the ultimate integral metal-to-metal well barrier.
Designed for extreme well applications the DTI PermaSeal CT Barrier enhances safety by eliminating elastomer leak paths and is suitable for use in HPHT, geothermal and harsh well environments.
Compared with exotic elastomer options the DTI Perma-Seal CT Barrier enhances safety and reduces the cost of operations.
Features
& Benefits
- Uses DTI's patented PermaSeal metal-to-metal sealing throughout.
- Up to 15,000 psi working pressure
- Fast and Safe Make up
- Minimal leakpaths.
| Part Number | Coiled Tubing Size | Outside Diameter | Inside Diameter |
|---|---|---|---|
| SCBM125169**THREAD | 1.25" | 1.688" | 0.75" |
| SCBM150212**THREAD | 1.50" | 2.125" | 1.00" |
| SCBM175238**THREAD | 1.75" | 2.375" | 1.00" |
| SCBM200288**THREAD | 2.00" | 2.875" | 1.25" |
| SCBM223312**THREAD | 2.375" | 3.125" | 1.25" |
| SCBM288362**THREAD | 2.875" | 3.62" | 1.50" |
