Pump Hold Down

FUNCTIONALITY

Artificial LiftArtificial Lift
Flow ControlFlow Control

DEPLOYMENT

Jointed Pipe / Cable

SECTORS

Oil & Gas

DTI's Pump Hold Downs for are design to be made up to the bottom of submersible pumps to enable the pump to locate and latch into either a nipple profile in the tubing string or into DTI’s Pump Hold Down System for Monobore completions.

The tool includes a collet and ‘V’ packing seals to latch and seal into a profile set in the tubing string. The Pump Hold Down also includes a no-go for location.

The Pump Hold Down can be used for deploying Tubing, Coiled Tubing and Cable Deployed ESP’s, Jet Pumps and Rod Pumps

Download DTI Product Sheet - Pump Hold Down

Download the file: Download DTI Product Sheet - Pump Hold Down

Download DTI Product Data Sheet - Pump Hold Down System

Download the file: Download DTI Product Data Sheet - Pump Hold Down System

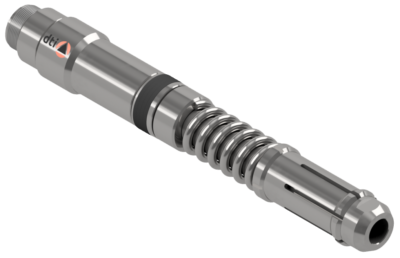

225 BPHD RENDER

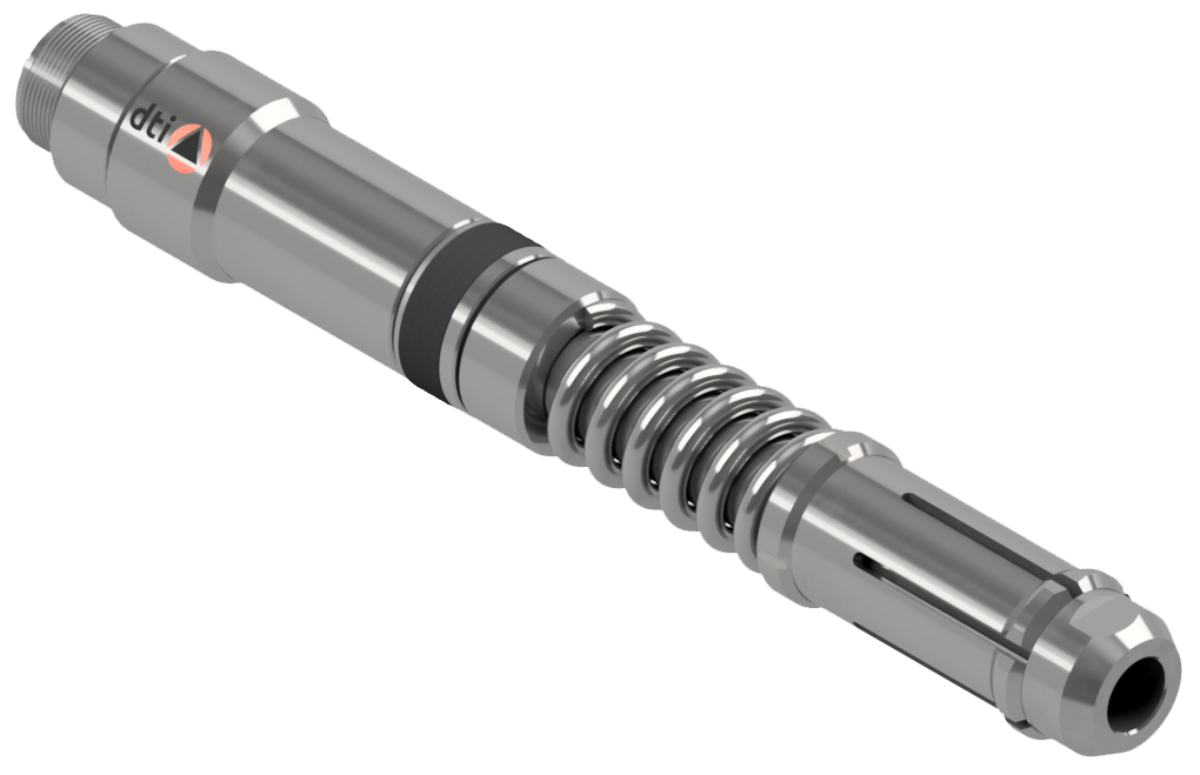

225 BPHD RENDER

Features and Benefits

  • Simple and well proven design.
  • Large ID
  • Simple to Redress.
  • Bespoke design to suit Pump and Nipple Profile.
  • DTI Filter Subs can be fitted to the lower threads.
Part NumberOutside DiameterInside DiameterNipple ProfileMakeup Length
225BPHD2.50”1.00”2.25” SN17.60”
225TPHD-DS2.31”1.06”2.25” DS7.51”
231TPHD-DS2.35”1.25”2.31” DS10.25”
281TPHD-DS2.88”1.50”2.81” DS10.00”

We offer optional equipment, alternative sizes, pressure ratings, materials and thread connections. Please contact us for more information.
