Slickline Multi-Purpose Pulling Tool
FUNCTIONALITY
Intervention
Flow ControlDEPLOYMENT
SECTORS

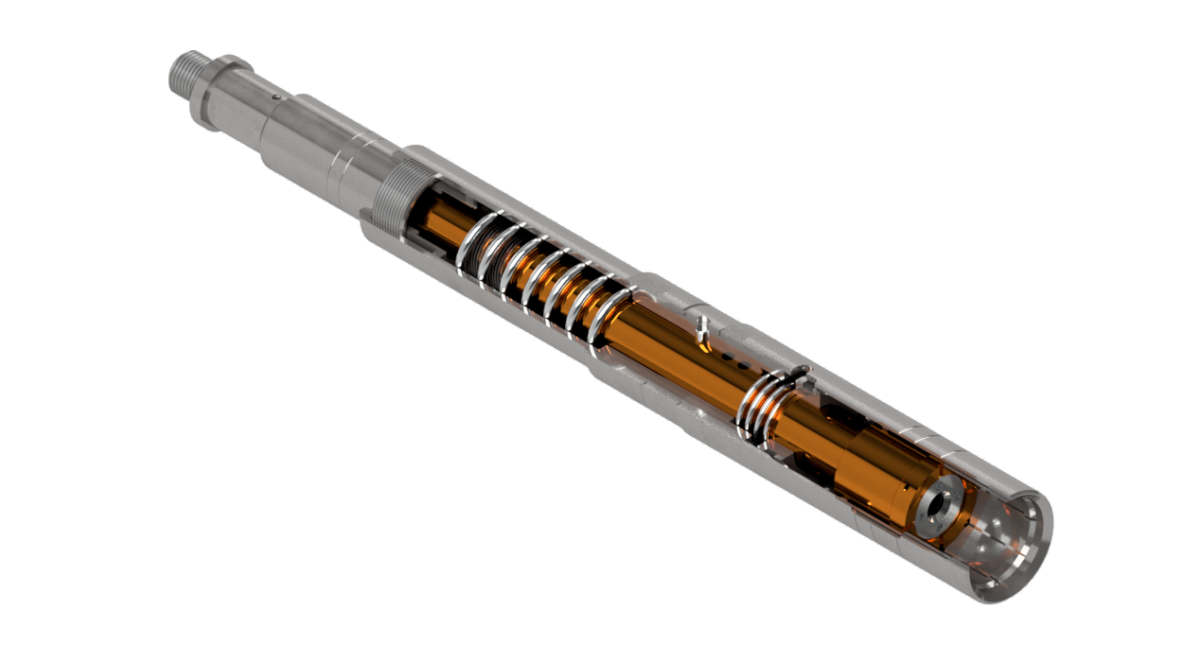

The DTI Slickline Multi-Purpose Pulling Tool (MPT) is a versatile, heavy duty and adjustable pulling tool that is able to latch most common external wireline tool strings fishing necks.
The DTI MPT is designed to engage an external fishing neck. The tool is adjustable and can be set to one of three reach settings to accommodate catching most fishing neck types.
In addition to the three reach settings the MPT can either be set for upward or downward shear to release.
The tool is robustly constructed and features a latching collet which has a 360° engagement on the fish neck.
The upper connection can be either standard sucker rod or a quick connect.
For centralisation in larger bores the cylinder can be replaced with integral bell guides are available.
Features and Benefits
- Three reach setting on each tool.
- Can be set for jar down to release or jar up to release.
- Single piece collet.
- 360° engagement on fish neck.
- Robust construction.
| Part Number | Outside Diameter | Top Connection | Fish Neck | Catch | Reach |
|---|---|---|---|---|---|
| 125MPT | 1.290” | 15/16-10 UN | 1.187” | 0.875” | 1.19”, 1.49”, 1.94” |
| 138MPT | 1.380” | 15/16-10 UN | 1.187” | 1.000” | 1.19”, 1.49”, 1.94” |
| 162MPT | 1.620” | 15/16-10 UN | 1.187” | 1.187” | 1.13”, 1.93”, 2.48” |
| 200MPT | 1.860” | 15/16-10 UN | 1.375” | 1.375” | 1.48”, 2.28”, 2.83” |
| 250MPT | 2.250” | 15/16-10 UN | 1.375” | 1.750” | 1.58”, 2.37”, 2.87” |
| 300MPT | 2.800” | 1 1/16-10 UN | 1.750” | 2.313” | 1.48”, 2.30”, 2.80” |
| 350MPT | 3.235” | 1 1/16-10 UN | 2.313” | 2.750” | 1.48”, 2.30”, 2.80” |
| 400MPT | 3.750”” | 1 9/16-10UN | 2.313” | 3.125” | 1.72”, 2.42”, 3.12” |
We offer optional equipment, alternative sizes, materials and thread connections. Please contact us for more information.
