Slim Pump Safety Valve
FUNCTIONALITY
Artificial Lift
Flow Control
Production OptimisationDEPLOYMENT
SECTORS

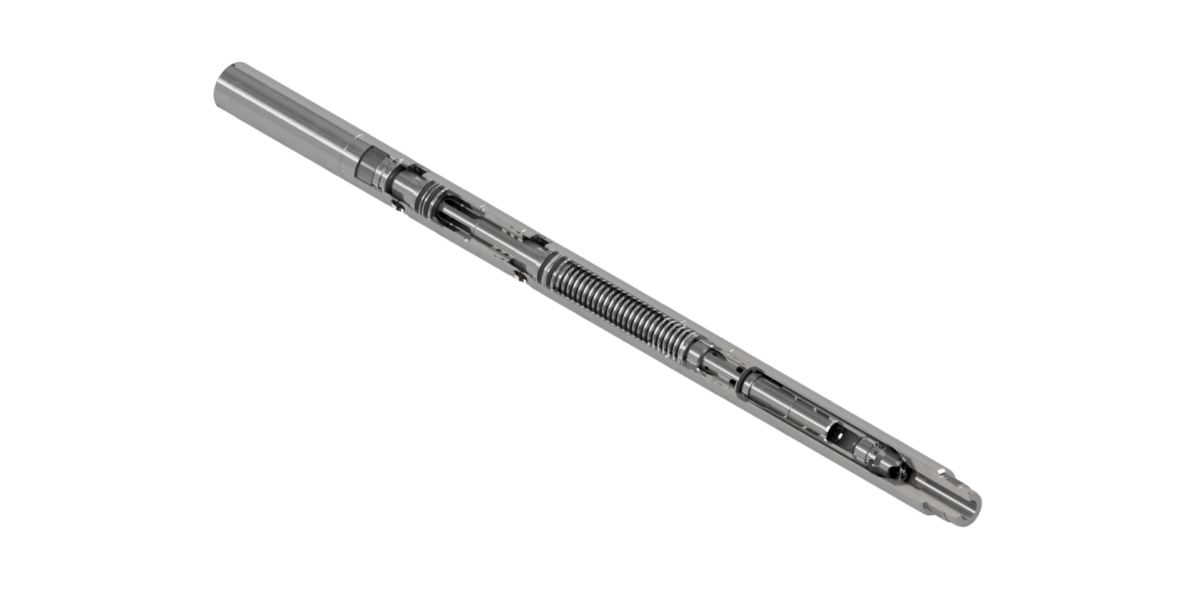

DTI's unique Slim Pump Safety Valve (SPSV) is incorporated into cable deployed ESP or jet pump systems, providing an API qualified downhole safety valve with minimal system complexity. It is set at the pump depth and activated by pump switch on and off. No control lines, surface control or cable sealing operations are required.
The SP Safety Valve is an API 14A qualified retrofittable safety valve intended for deployment with a range of artificial lift methods. The valve requires no existing or additional control lines or nipple profiles to work as it uses ESP or jet pump pressure to operate.
The patented design facilitates bi-directional sealing and unloading at full working pressure. It is surface testable and operates as a fluid loss valve (FLV), and can be used as a deep set valve.
FEATURES
& BENEFITS
- Fast and efficient installation – can be retrofitted through tubing in-line with a cable-deployed ESP, reducing runs and complexity.
- Can be fitted above an existing failed ESP to avoid remediation/ workover.
- Patented valve design actuated by pressure differentials to fail-safe close when the ESP is off and open while pumping.
- Subsurface pressure controlled design eliminates pressurised chambers, control lines and power supply, improving simplicity, speed of actuation, ease of deployment and reliability.
- SPSV operates independently below the ESP removing reliance on existing SSSV components.
- Bi-directional design allows pressure testing. Well pressure or surface test pressure boosts the valve shut.
- FLV operation prevents backspin of ESP.
- Metal to metal seat and poppet design for improved reliability.
- Flexible configurations and multi-purpose applications.
APPLICATIONS
Cable Deployed ESPs
The SPSV has been specifically designed to be retrofitted to low pressure wells and run in-line with a cable deployed ESP solving the issue of the cable rendering the existing safety valve inoperable.
The valve can be deployed standalone with a packer or with the pump BHA and can be fitted above an existing, failed ESP to avoid remediation/ workover.
Jet Pumps
The valve has also been deployed as a jet pump safety valve - the first of its kind. The valve is typically run in inverse jet pump deployment as part of a straddle assembly.
| Part Number | Outside Diameter | Standard Connection | Pressure Rating | Temp. Rating | Length | Other | Flow Area (in²) |
|---|---|---|---|---|---|---|---|
| SP-SV217 | 2.17" | Customer Defined | 5,000 PSI | 150°C / 302°F | 48" | 0.33 | |
| SP-SV263 | 2.625" | Customer Defined | 5,000 PSI | 150°C / 302°F | 48" | Design flow rate 2000bbl/day | 0.78 |
| SP-SV319 | 3.19" | Customer Defined | 5,000 PSI | 150°C / 302°F | 54" | Design flow rate 5000bbl/day | 1.58 |
