Coiled Tubing Feeder Snake
FUNCTIONALITY
Intervention
Wellbore CleanoutDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

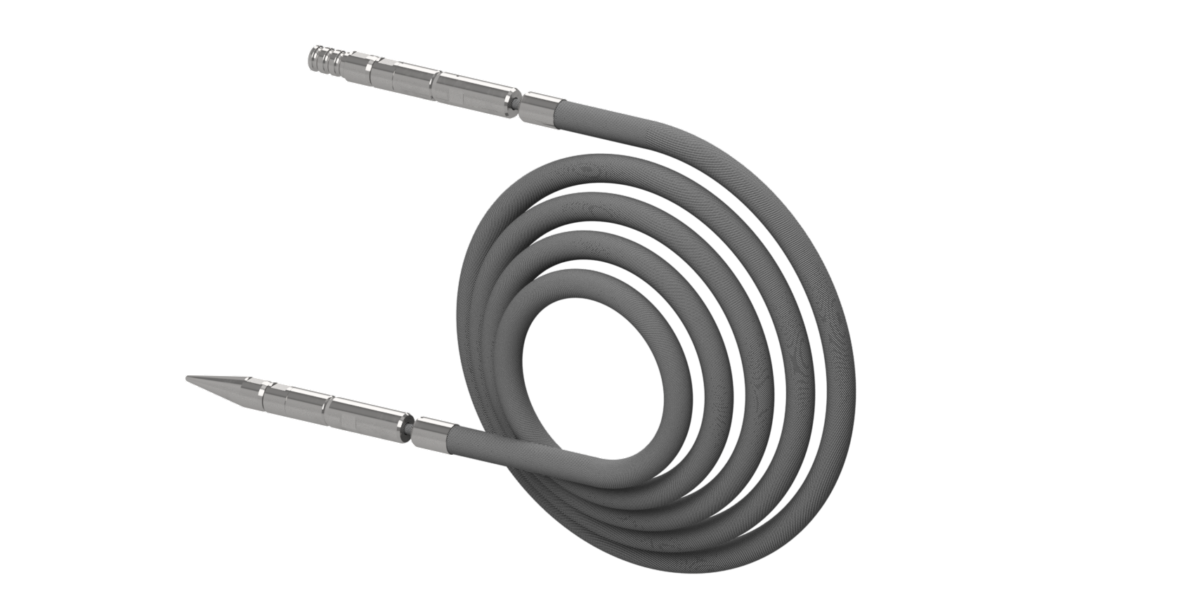

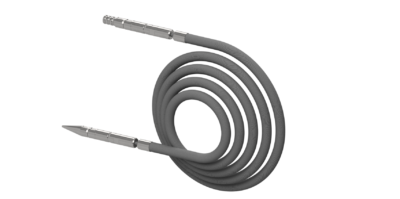

The DTI Coiled Tubing Feeder Snake is a service tool that is used as a flexible guide to help feed the coiled tubing from the Coiled Tubing Reel over the Goose Neck and into the Injector.
The Feeder Snake is connected to the end of the coiled tubing with an internal connector, typically a roll-on connector and comprised a length of cable with the same outside diameter of the coiled tubing. A guide dart on the other end of the cable helps locate the cable into the injector.
Features and Benefits
- Proof pull tested prior to shipping.
- Integrated swivel to cable does not twist.
- Grooved roll-on connector to accept coiled tubing weld bead for minimal preparation.
- Typical cable length is 15ft.
| Part Number | Coiled Tubing OD | Coiled Tubing Wall | Length | Proof Test |
|---|---|---|---|---|
| FSRC1210915 | 1.250” | 0.109” | 15ft | 2 tons |
| FSRC1510915 | 1.500” | 0.109” | 15ft | 2 tons |
| FSRC1710915 | 1.750” | 0.109” | 15ft | 2 tons |
| FSRV1717515 | 1.750” | 0.175” | 15ft | 2 tons |
| FSRC2015615 | 2.000” | 0.156” | 15ft | 2 tons |
| FSRC2313415 | 2.375” | 0.134” | 15ft | 2 tons |
| FSRC2317515 | 2.375” | 0.175” | 15ft | 2 tons |
We offer optional equipment, alternative sizes, materials and thread connections. Please contact us for more information.
