Coiled Tubing Knuckle Joint
FUNCTIONALITY
InterventionDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

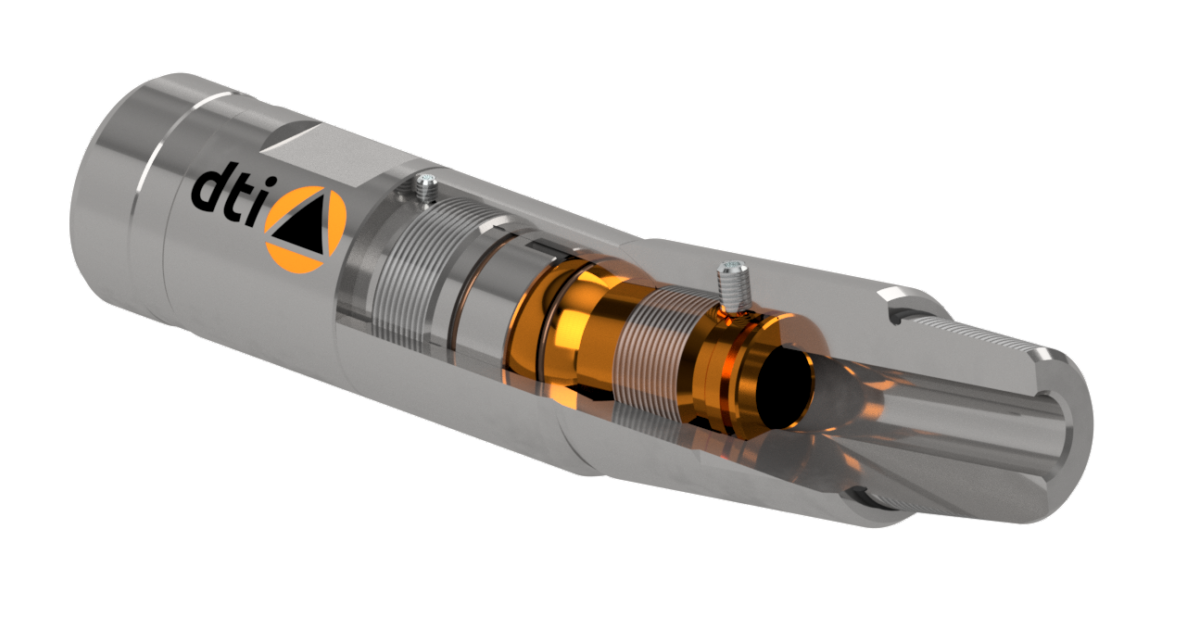

The DTI Coiled Tubing Knuckle Joint is a fully sealed joint that provides the CT tool string with an inclusive 15 degrees of flexible deviation. The inside diameter at the knuckle is bevelled in order to maximise the bore when the joint is at full deviation. The knuckle also enables the rotation of CT tool string at surface to allow conventional tool threaded make ups and break-outs.
Features & Benefits
- Uninterrupted, sealed flow through bore.
- Internal pressure seals.
- Robust design in tension and compression.
- Up to 8° bend from centre line.
| Part Number | Outside Diameter | Inside Diameter | Length | Thread |
|---|---|---|---|---|
| CKJ150AC08 | 1.500” | 0.50” | 7.50” | 1.00 AMMT |
| CKJ169AC08 | 1.687” | 0.50” | 9.50” | 1.00 AMMT |
| CKJ175AC08 | 1.750” | 0.50” | 9.50” | 1.00 AMMT |
| CKJ212AC09 | 2.125” | 0.63” | 11.10” | 1.50 AMMT |
| CKJ288AC23 | 2.875” | 1.00” | 11.70” | 2.38 PAC |
