Dual Action Coiled Tubing Spring Accelerator
FUNCTIONALITY
Intervention
Production Optimisation
Wellbore CleanoutDEPLOYMENT
SECTORS
The DTI Coiled Tubing Dual Action Spring Accelerator is used with a DTI Dual Action Mechanical or Hydraulic Jars. The Accelerator provides stored tension or compression energy in addition to the coiled tubing spring effect.
The DTI Coiled Tubing Dual Action Accelerator stores compression or tension, via disc springs, that are released rapidly when the jar is fired. This is especially useful to increase jarring impacts when operating at a shallow depth or in a deviated well.
The DTI Coiled Tubing Dual Action Accelerator uses high quality seals to maintain pressure integrity and has a large ID compatible with DTI Jars.
The Dual Action Spring Jar is simple to operate and to maintain. It is capable of transmitting torque and matches the DTI Coiled Tubing Jar inside diameter and stroke.
Features
& Benefits
- Enables repeatable upward and downward impacts.
- Designed for ease of use and redress.
- Matches the stroke of the DTI Dual Action Hydraulic and Spring Jar.
- Torque Through
| PART NUMBER | OUTSIDE DIAMETER | INSIDE DIAMETER | MAXIMUM SPRING LOAD | LENGTH (CLOSE/OPEN) | THREAD CONNNECTIONS |
|---|---|---|---|---|---|
| DTA169AA08 | 1.688" | 0.56" | 600 LBS | 49.2"/59.8" | 1.00 AMMT |

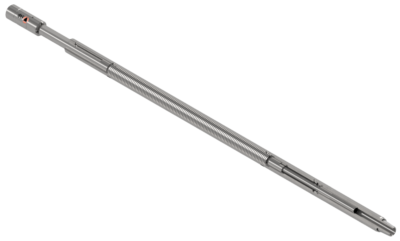

| DTA212AA09-1 | 2.125" | 0.75" | 3,700 LBS | 62.1"/72.1" | 1.50" AMMT |
| DTA288AA23 | 2.875" | 1.00" | 2,100 LBS | 57.4"/69.4" | 2.38 PAC |
