Hammerhead Accelerator
FUNCTIONALITY
Intervention
Wellbore CleanoutDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas
CO₂, Hydrogen & Gas Storage
Geothermal

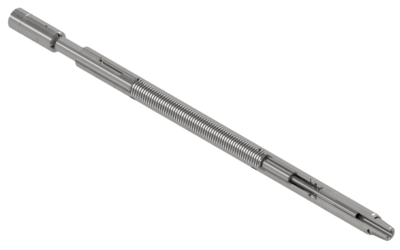

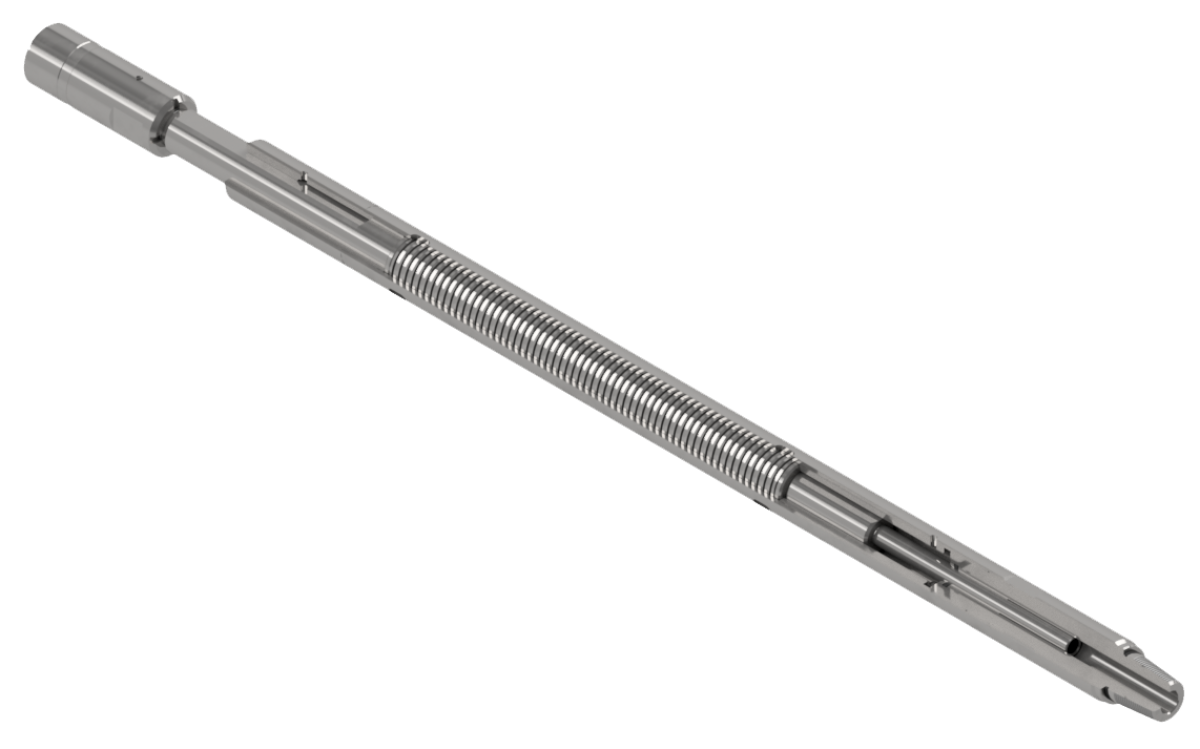

The DTI Dual Acting Hammer Head Accelerator intensifies the up or down jarring force of the Hammer Head flow hammer tools.
The Hammer Head Accelerator also provides the string flexibility which allows for the Hammer Head reciprocating movement when operating at shallow operating depths < 1000ft and during surface testing, after set down weight is applied.
(When operating at depths >1500ft this movement will be partly taken up through the coiled tubing)
Features
& Benefits
- Compact Length.
- Can be run with Up Hammer, Down Hammer or Bi-Directional Hammer.
- Provides additional stroke and string flexibility to operate the hammerhead at shallow operating depths (<1000ft) and during surface testing.
- Used disc springs to store energy to intensify impact forces.
- High quality seals to maintain seal integrity.
- Stroke matches Hammerhead Impact Tools.
- Flow bore matches Hammerhead Impact Tools.
| Part Number | Outside Diameter | Inside Diameter | Stroke | Toolstring Connection |
|---|---|---|---|---|
| FHA169AA08-2 | 1.688" | 0.390" | 3" | 1.00 AMMT |
| FHA212AA09-2 | 2.125" | 0.500" | 3" | 1.50 AMMT |
| FHA288AA23-2 | 2.875" | 0.875" | 6" | 2.38 PAC |
We offer optional equipment, alternative sizes, materials and thread connections. Please contact us for more information.
