Slickline GU Adaptor
FUNCTIONALITY
Intervention
Flow ControlDEPLOYMENT
SECTORS

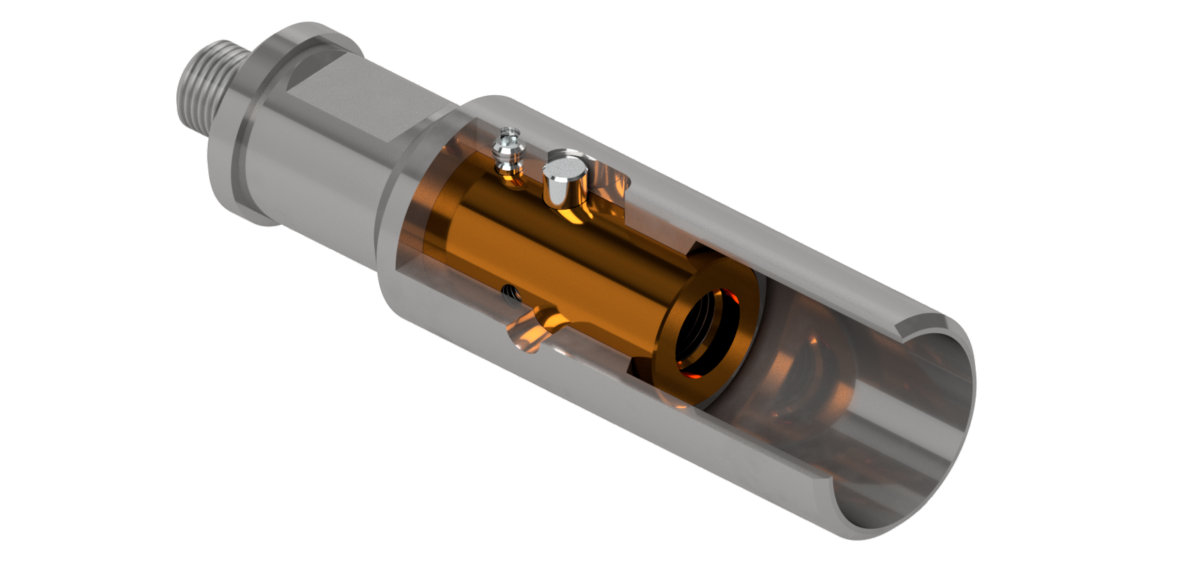

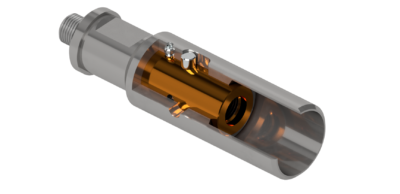

The DTI GU Adaptor is used to convert the GS Pulling Tool from a jar down to release pulling tool to a jar up to release pulling tool. The combined GS Pulling Tool with GU adaptor is called a GR Pulling Tool. The combination tool allows down jarring on a fish without shearing and releasing off the fish.
The DTI GU Adaptor is connected to the fish neck of the GS Pulling Tool. The shear pin in the GS Pulling Tool is the removed. The fish neck and top thread of the GS Pulling Tool need to match the inside diameter of the fish neck on the GU adaptor and thread in the shear sub respectively.
A heavy-duty version of the GU adaptor as well as a Double Jar Down Adaptor is also available.
Features and Benefits
- Generic design.
- Slimline versions.
- Can be devised to fit all sizes for GS Pulling Tool.
- Robust construction for the toughest of fishing operations.
| Part Number | OD | Top Connection | Fish Neck | Matching GS |
|---|---|---|---|---|
| 200DTIGU | 1.810” | 15/16-10 UN | 1.375” | 200DTIGS |
| 250DTIGU | 2.250” | 15/16-10 UN | 1.750” | 250DTIGS |
| 300DTIGU | 2.720” | 1 1/16-10 UN | 2.313” | 300DTIGS, 350DTIGS & 400DTIGS |
| 300DTIGU-1 | 2.720” | 1 1/16-10 UN | 1.750” | 300DTIGS, 350DTIGS & 400DTIGS |
| 500DTIGU | 3.600” | 1 1/16-10 UN | 3.125” | 500DTIGS |
| 700DTIGU | 5.090” | 1 9/16-10 UN | 3.125” | 700DTIGS, 705DTIGS &775DTIGS |
We offer optional equipment, alternative sizes, materials and thread connections. Please contact us for more information.
