Slickline GS Pulling Tool
FUNCTIONALITY
Intervention
Flow ControlDEPLOYMENT
SECTORS

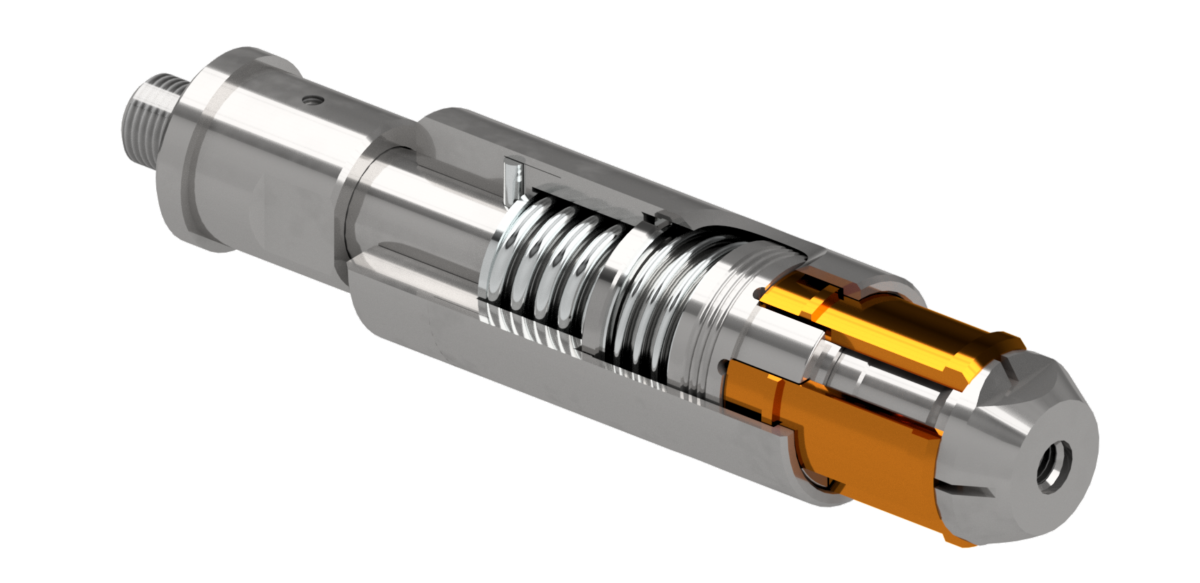

The DTI GS Pulling Tool is a wireline latching device that can establish the connection between the wireline tool string and a device with a suitable internal fish neck profile, typically a standard GS profile, that is to be either run in or retrieved from the well.
The DTI GS Pulling Tool is released from downhole devices by jarring downwards. It is typically used in applications such as the retrieval of Lock Mandrels.
A GU Adaptor can be combined with this tool to create an up jar to release GR Pulling Tool. A heavy duty version of the GU adaptor as well as a Double Jar Down Adaptor is also available.
A Heavy Duty version of the GS Pulling Tool can also be supplied.
Features and Benefits
- Generic design.
- Flow through and slimline versions.
- Catches a wide range of fish necks.
- Robust construction for the toughest of fishing operations.
| Part Number | OD | Top Connection | Fish Neck | Catch | Latch Mechanism |
|---|---|---|---|---|---|
| 125DTIGS | 1.170” | 5/8-11 UN | 1.000” | 0.88” | Dogs |
| 150DTIGS | 1.470” | 15/16-10 UN | 1.187” | 1.06” | Dogs |
| 150DTIGS-1 | 1.370” | 15/16-10 UN | 1.187” | 1.06” | Collet |
| 200DTIGS | 1.810” | 15/16-10 UN | 1.375” | 1.38” | Dogs |
| 250DTIGS | 2.250” | 15/16-10 UN | 1.750” | 1.81” | Dogs |
| 300DTIGS | 2.720” | 1 1/16-10 UN | 2.313” | 2.31” | Dogs |
| 350DTIGS | 3.110” | 1 1/16-10 UN | 2.313” | 2.62” | Dogs |
| 400DTIGS | 3.620” | 1 1/16-10 UN | 2.313” | 3.12” | Dogs |
| 450DTIGS | 3.875” | 1 1/16-10 UN | 2.313” | 3.12” | Dogs |
| 500DTIGS | 4.550” | 1 1/16-10 UN | 3.125” | 4.00” | Dogs |
| 500DTIGS-1 | 4.550” | 1 9/16-10 UN | 3.125” | 4.00” | Dogs |
| 600DTIGS | 5.560” | 1 9/16-10 UN | 3.125” | 4.75” | Dogs |
| 700DTIGS | 5.880” | 1 9/16-10 UN | 3.125” | 5.38” | Dogs |
| 705DTIGS | 6.550” | 1 9/16-10 UN | 3.125” | 5.88” | Dogs |
| 775DTIGS | 6.937” | 1 9/16-10 UN | 3.125” | 6.25” | Dogs |
| 862DTIGS | 7.770” | 1 9/16-10 UN | 3.125” | 7.12” | Dogs |
| 963DTIGS | 8.318” | 1 9/16-10 UN | 3.125” | 7.62” | Dogs |
We offer optional equipment, alternative sizes, reaches, materials and thread connections. Please contact us for more information.
