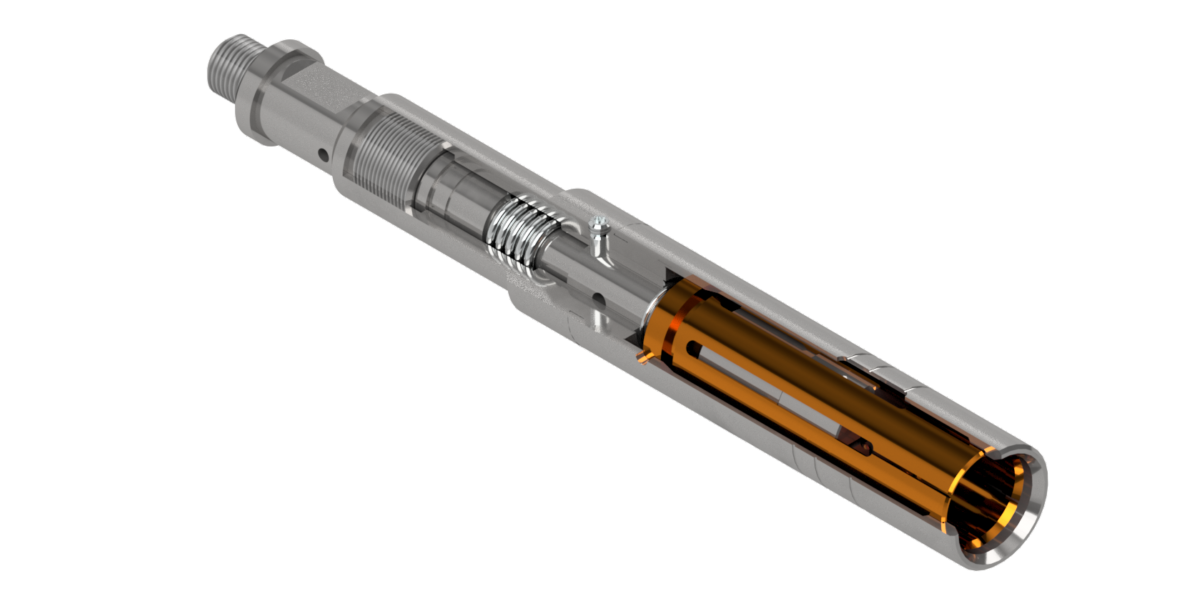

The DTI Slickline Heavy Duty Pulling Tool (HPT) is an extremely robust tool for most aggressive jarring and fishing operations.
The HPT Pulling Tool is designed to engage an external type fishing neck and features a latching collet which provides full 360° engagement around the fishing neck circumference. The tool is typically shear down to release but a shear up (HPTU) version is also available in all the same sizes.
The tool is robustly constructed and features a latching collet which has a 360° engagement on the fish neck.
The upper connection can be either standard sucker rod or a quick connect and alternative cores can be supplied to adjust the reach of the tool.
Features and Benefits
- Easy to assemble.
- Single piece collet.
- 360° engagement on fish neck.
- Catches a wide range of fish necks.
- Robust construction for the toughest of fishing operations.
| Part Number | Outside Diameter | Top Connection | Fish Neck | Catch | Reach |
|---|---|---|---|---|---|
| 100HPT | 1.000” | 9/16-12 UN | 0.750” | 0.687” | 1.31” |
| 106HPT | 1.060” | 5/8-11 UNC | 0.750” | 0.750” | 1.31” |
| 125HPT-1 | 1.290” | 15/16-10 UN | 1.187” | 0.875” | 1.31” |
| 138HPT | 1.380” | 15/16-10 UN | 1.187” | 1.000” | 1.31” |
| 162HPT | 1.625” | 15/16-10 UN | 1.187” | 1.187” | 1.56” |
| 200HPT | 1.860” | 15/16-10 UN | 1.375” | 1.375” | 2.20” |
| 250HPT | 2.250” | 1 1/16-10 UN | 1.750” | 1.750” | 2.21” |
| 300HPT | 2.800” | 1 1/16-10 UN | 1.750” | 2.313” | 2.03” |
| 400MPT | 3.750” | 1 9/16-10UN | 2.313” | 3.125” | 3.00” |
| 162HPTU-1 | 1.625” | 15/16-10 UN | 1.187” | 1.187” | 1.19” |
| 200HPTU-1 | 1.860” | 15/16-10UN | 1.375” | 1.375” | 1.44” |
| 250HPTU | 2.250” | 1 1/16-10UN | 1.375” | 1.750” | 1.83” |
| 300HPTU | 2.800” | 1 1/16-10UN | 1.750” | 2.313” | 1.83” |
| 400HPTU | 3.750” | 1 9/16-10UN | 2.313” | 3.125” | 2.73” |
We offer optional equipment, alternative sizes, reaches, materials and thread connections. Please contact us for more information.
