Surface Test PermaSeal External Slip Connector
FUNCTIONALITY
InterventionDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas
CO₂, Hydrogen & Gas Storage
Geothermal

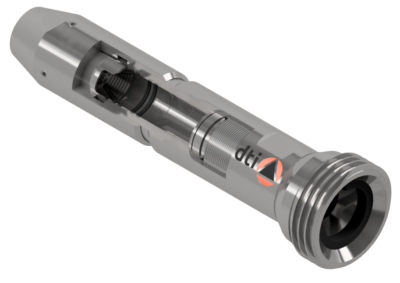

The DTI PermaSeal External Slip Connector provides a quick and simple means of connecting the coiled tubing string to surface equipment so that pressure testing can be carried out.
The connector is supplied with a 2" 1502" WECO Female connection to allow for direct connections to the test equipment.
The standard DTI torque through connector is 15,000 psi rated and includes the proprietary PermaSeal metal-to-metal sealing technology backed up with O-Rings to ensure a secure connection and seal.
Features
& Benefits
- Slips bite into the coiled tubing.
- Double Viton O-Ring seals with metal to metal ‘PermaSeal’
- 2” 1502 Connection to make up to surface pressure equipment.
- 15,000 psi Working Pressure
- Torque Through Capability
| Part Number | Coil Size | Maximum Torque | Working Pressure | End Connection |
|---|---|---|---|---|
| SCTMU175AA31 | 1 3/4" | 1600 ft. lbs | 15,000 psi | 2" 1502 WECO Female |
| SCTMU200AA31 | 2" | 2700 ft. lbs | 15,000 psi | 2" 1502 WECO Female |
| SCTMU238AA31 | 2 3/8" | 3100 ft. lbs | 15,000 psi | 2" 1502 WECO Female |
