External Slip Connector
FUNCTIONALITY
Intervention
Wellbore CleanoutDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

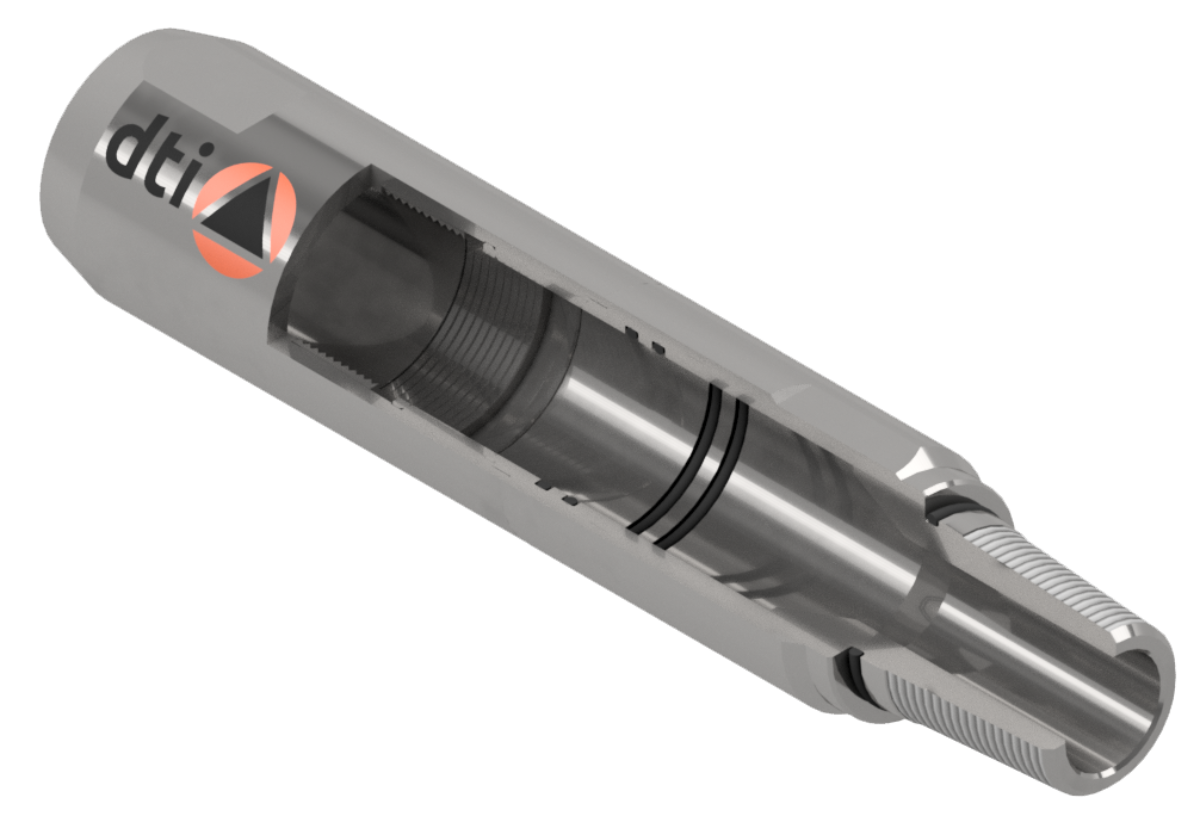

The DTI External Slip Connector forms a full bore sealed joint between the outside of the coiled tubing and the tool string. The tool is made up by pushing the slips over the outside of the coiled tubing and then making up the top sub. No special tools are required.
When making up the top sub tapered slips with internal teeth bite onto the tubing and pull up into a tapered bowl, in a similar manner to an overshot; the harder the CT pull the harder the bite, making it a very strong connector.
Features
& Benefits
- Slips bite into the coiled tubing.
- Compact
- Double Viton O-Ring seals.
- No special tooling required.
- Pull testing caused the slips to bite harder into the coiled tubing making it a strong and reliable connection.
| PART NUMBER | TOOL OUTSIDE DIAMETER | TOOL INSIDE DIAMETER | THREAD CONNECTIONS |
|---|---|---|---|
| SC125169AC08 | 1.688" | 0.750" | 1.00 AMMT |
| SC150212AC09 | 2.125" | 1.000" | 1.50 AMMT |
| SC175238AC09 | 2 375" | 1.000" | 1.50 AMMT |
| SC200288AC23 | 2.875" | 1.375" | 2.38 PAC |
| SC238288AC23 | 2.875" | 1.375" | 2.38 PAC |
