Active Pressure Relief Valve
FUNCTIONALITY
InterventionDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas
CO₂, Hydrogen & Gas Storage
Geothermal

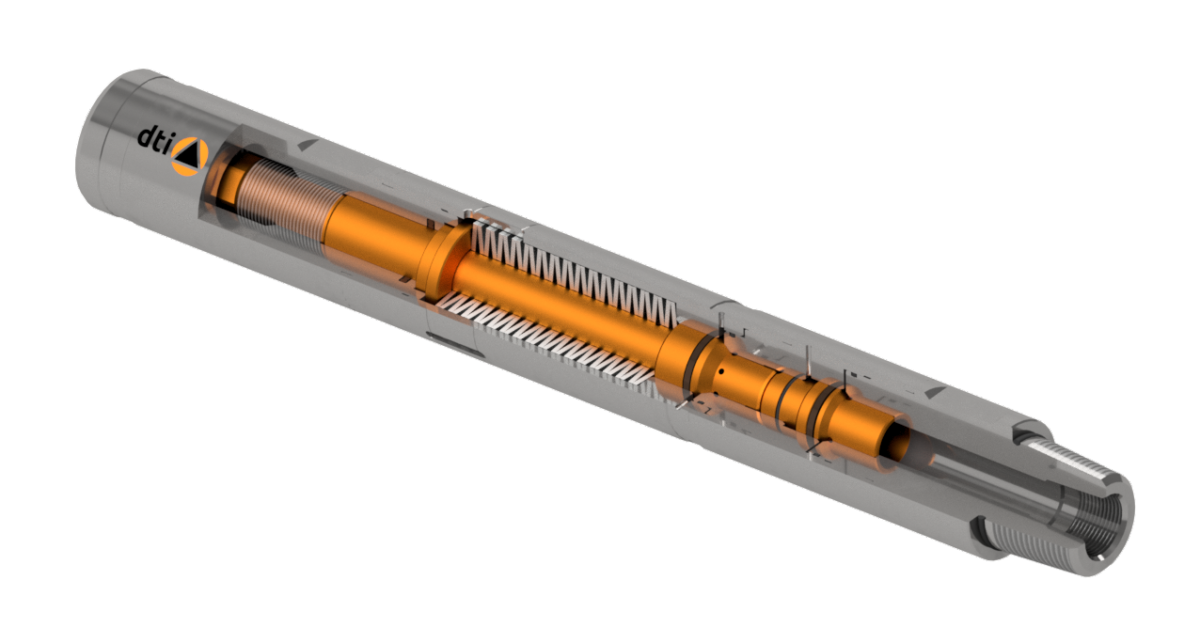

Use the DTI Active Pressure Relief Valve to prevent BHA over-pressure and protect tools.
The DTI Active Pressure Relief Valve opening pressure is set at surface so that when BHA pressure increases, flow ports to the annulus open. When the flow rate is increased, the gradual valve opening mechanism maintains the pre-set BHA pressure by diverting a controlled volume of fluid to the annulus.
A metal to metal sealing mechanism maintains Active Pressure Relief Valve opening pressure reliability and closes when flow rate is reduced. The valve is simple to adjust and operate and can be used in a variety of applications.
Features
& Benefits
- Easy to adjust opening pressure
- Metal-to-metal seal mechanism
- Eliminate overpressure damage to tools in BHA
- Eliminate Shifting Tool oscillation when run below Impact Hammers
- Increase annular velocity without pumping through sensitive tools
Applications
CT Motor Protection
- Protect motors and other tools from accidental overpressure.
Impact Hammer deployment
- Run with Impact Hammers to maintain consistent pressure at the Shifting Tool
Increase annular flow rates
- Increase annular flow rate while maintaining consistent BHA pressure
| Part Number | Outside Diameter | Inside Diameter | Standard Connection | Activation Pressure |
|---|---|---|---|---|
| PRV169AA08 | 1.688" | 0.375" | 1.00 AMMT | 700 - 1,800 PSI |
| PRV175AA08 | 1.75" | 0.375" | 1.00 AMMT | 700 - 1,800 PSI |
| PRV212AA09 | 2.125" | 0.50" | 1.50 AMMT | 700 - 1,800 PSI |
| PRV288AA23 | 2.875" | 1.00" | 2.375 PAC | 700 - 1,800 PSI |
| PRV312AA10 | 3.125" | 1.00" | 2.375 REG | 700 - 1,800 PSI |
