Flow Activated GS Pulling Tool
FUNCTIONALITY
Intervention
Flow ControlDEPLOYMENT
SECTORS

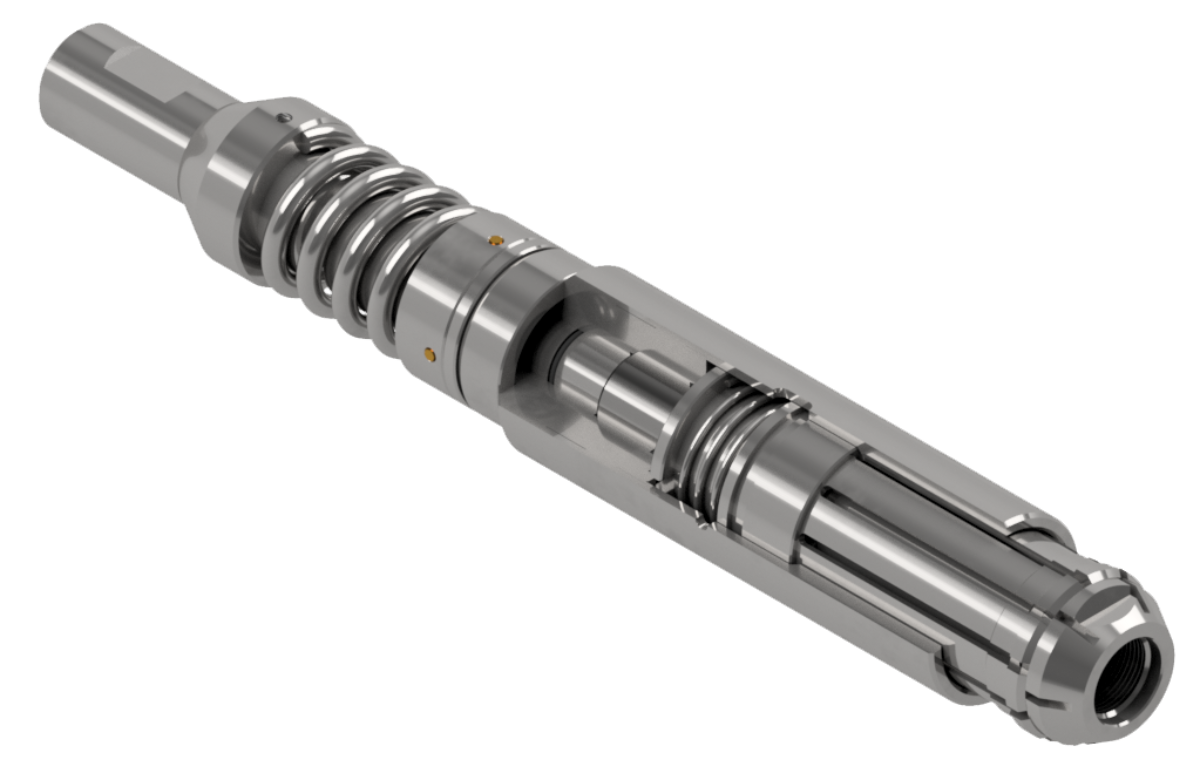

The Coiled Tubing DTI GS Pulling Tool is a hydraulic release action tool used for running or retrieving downhole tools with standard size internal fishing necks.
The Coiled Tubing DTI GS Pulling Tool has a collet dog arranged over a central core providing 360 degree shoulder engagement to the fishing neck, so maximizing the bearing load capability.
Release is achieved by increasing Coiled Tubing flow/pressure to operate a piston which disengages the core from the collet dog.
The Coiled Tubing DTI GS Pulling Tool is available in sizes covering most standard internal fishing neck diameters.
Features
& Benefits
- Engages standard size fish necks.
- Flow activated release.
- Collet dog ring gives close to 360° engagement to maximise bearing load capacity
- Customised bell guide skirts are available.
- Thread in core for choke and probes/prongs
- Slimline versions available.
| Part Number | Size | Body Diameter | Engages Fish Neck | Tensile Strength | Toolstring Connection |
|---|---|---|---|---|---|
| PTI125AA32 | 1.25” | 1.255” | 0.88” | 24,000 lbf | 1.00 10 SA |
| PTI150AA08 | 1.50” | 1.690” | 1.06” | 20,000 lbf | 1.00 AMMT |
| PTI200AA08 | 2.00” | 1.812” | 1.38” | 46,000 lbf | 1.00 AMMT |
| PTI250AA09 | 2.50” | 2.250” | 1.81” | 70,000 lbf | 1.50 AMMT |
| PTI300AA23 | 3.00” | 2.730” | 2.31” | 80,000 lbf | 2.38 PAC |
| PTI350AA23 | 3.50” | 3.110” | 2.62” | 80,000 lbf | 2.38 PAC |
| PTI400AA23 | 4.00” | 3.625” | 3.12” | 84,000 lbf” | 2.38 PAC |
| PTI500AA23 | 5.00” | 4.550” | 4.00” | 150,000 lbf | 2.38 PAC |
| PTI600AA10 | 6.00” | 5.560” | 4.75” | 100,000 lbf | 2 3/8” REG |
| PTI700AA23 | 7.00” | 5.830” | 5.38” | 150,000 lbf | 2.38 PAC |
| PTI775AA23 | 7.75” | 6.937” | 6.25” | 150,000 lbf | 2.38 PAC |
| PTI963AA66-1 | 9.62” | 8.320” | 7.62” | 250,000 lbf | 3 ½ IF |
We offer optional equipment, alternative sizes, materials and thread connections. Slimline versions of some pulling tools are available. Please contact us for more information.
