High Torque Indexing Tool
FUNCTIONALITY
Intervention
Production Optimisation
Wellbore CleanoutDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

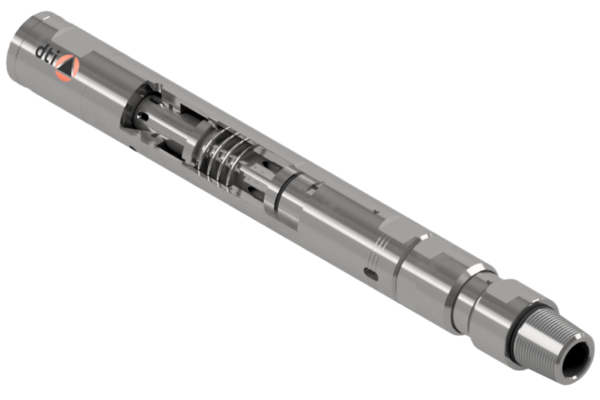

The DTI High Torque Indexing Tool can be used in any application where a high torque rotation of the BHA is required. Hydraulic toolstring pressure is converted to torque of up to 600FT-LBS and a pre-determined rotation of 15-45°. Each time the toolstring pressure is bled off and increased the High Torque Indexing Tool cycles again, resulting in another tool-string rotation.
Commonly used as part of the DTI Multi-Lateral Entry System the High Torque Indexing Tool can also be used to hook difficult fish, jetting tunnelling applications and other stimulation and clean out work.
Features
& Benefits
- High Torque for rotating heavy BHA’s
- Adjustable rotation from 15-45°
- Used as part of the DTI Multi-Lateral Entry System to enter multiple laterals in a single CT trip
- Can be used for applications requiring orientation including fishing, jetting tunneling, cleanouts and stimulation
| Part Number | Outside Diameter | Inside Diameter | Standard Index | Toolstring Connections |
|---|---|---|---|---|
| CIT169AC08-1 | 1.688" | 0.375" | 30° | 1.00 AMMT |
| CIT175AC08-1 | 1.75" | 0.375" | 30° | 1.00 AMMT |
| CIT212AC09-1 | 2.125" | 0.500" | 30° | 1.50 AMMT |

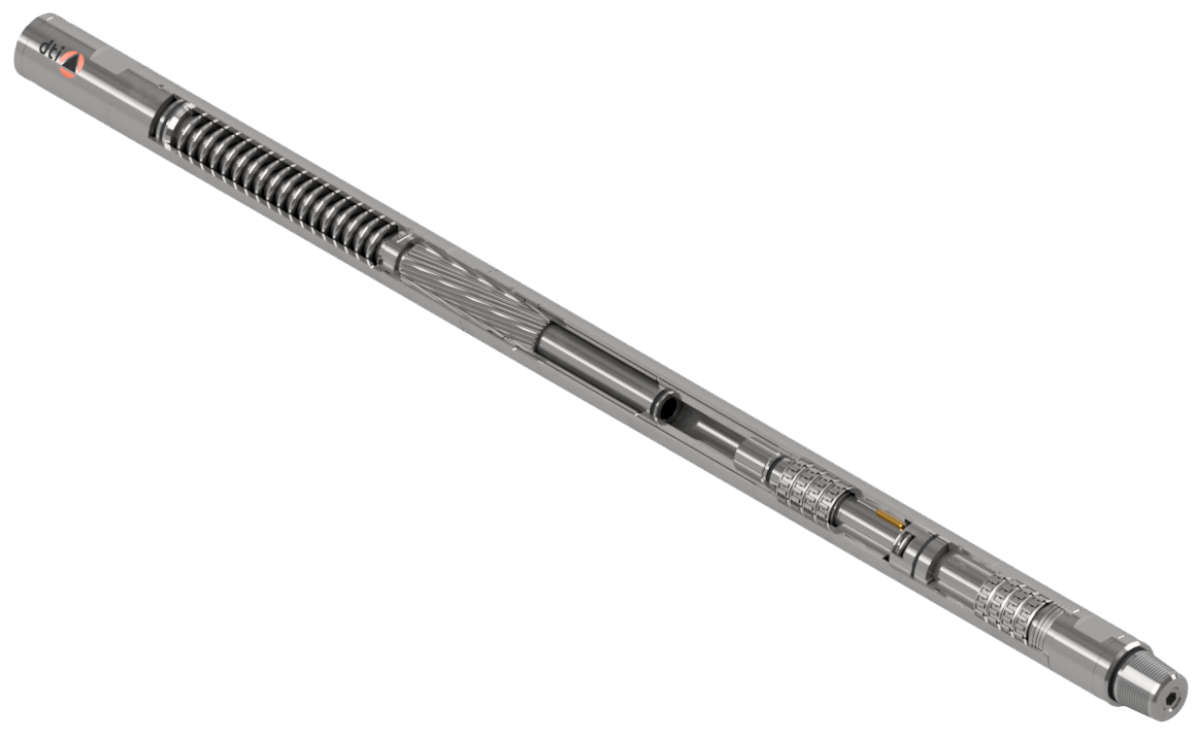

| CIT288AC23-1 | 2.875" | 0.938" | 30° | 2.38 PAC |
| CIT312AA10 | 3.125" | 0.938" | 30° | 2.375 REG |
