Coiled Tubing Self-Aligning Connector
FUNCTIONALITY
Intervention
Production OptimisationDEPLOYMENT
SECTORS

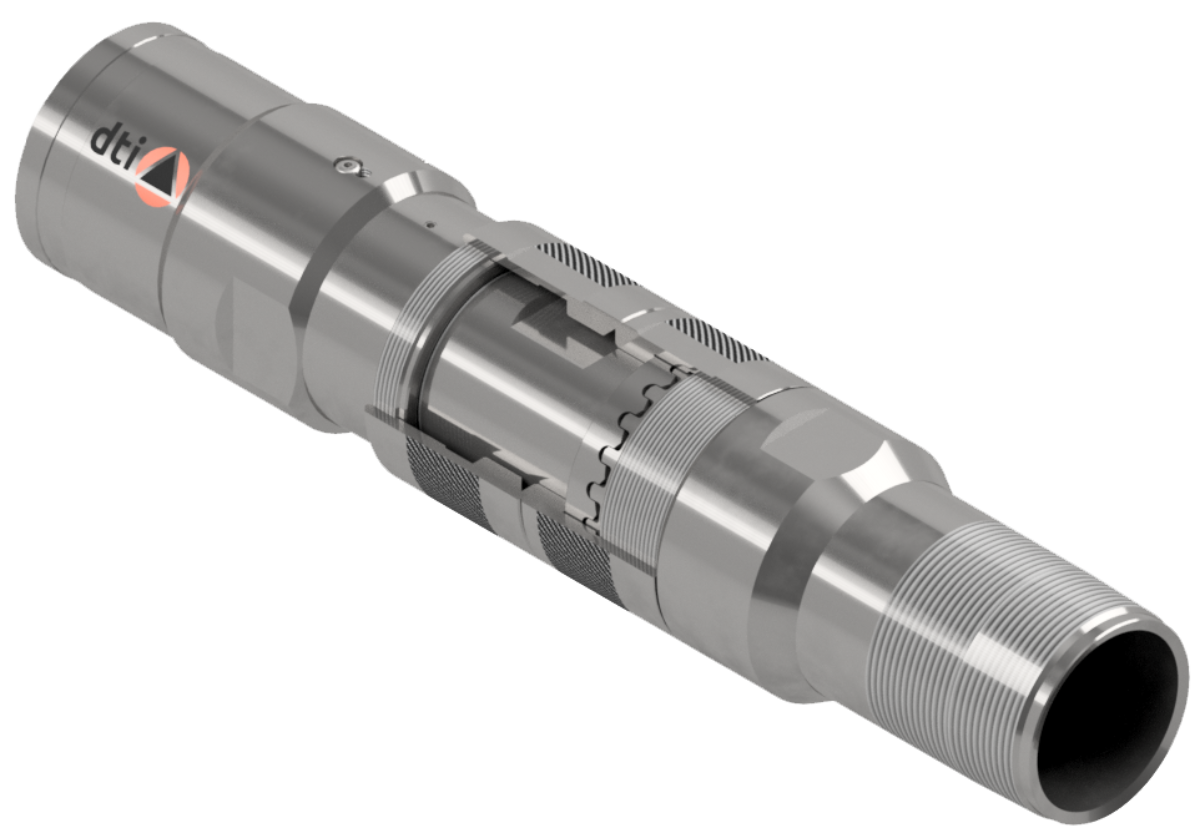

The DTI Coiled Tubing Self Aligning Connector is a tool that enables the connection and disconnection of the CT tool string at surface where rotation of the tool string is restricted preventing the make up of conventional threaded connections. The tapered nose of the upper connectors enables make up even when the upper and lower parts of the tool string are mis-aligned due to the inherent bend in the coiled tubing.
Once the tapered nose is fully located into the bottom sub of the Self-Aligning Connector outer threaded collars can be used to secure the connection.
As well as O-Ring sealing the tapered nose also provided a metal to metal seal which is useful for longer term deployments such as for coiled tubing completion and gas lift strings. This tool can be used in conjunction with the DTI Permaseal Metal to Metal Coiled Tubing Slip Connector
Features
& Benefits
- Tool string does not require rotation to make up connector
- Tapered Cone for ease of make up.
- Metal to metal sealing.
- Anti-Rotation Castellations enable the tool to be torqued through.
- Two outer threaded collars to provide secure make-up.
Applications
- Deployment Strings
- Coiled Tubing Completions
- Coiled Tubing Gas Lift Strings
| Part Number | Outside Diameter | Inside Diameter | Make-Up Length | Threaded Connections |
|---|---|---|---|---|
| SAC169AC08 | 1.688" | 0.620” | 15.50” | 1.00 AMMT |
| SAC175AC08 | 1.750” | 0.620” | 15.50” | 1.00 AMMT |
| SAC212AC09 | 2.125” | 0.880” | 15.50” | 1.50 AMMT |
| SAC288AC23 | 2.875” | 1.250” | 15.50” | 2.38 PAC |
| SAC312AC23 | 3.125” | 1.250” | 15.50” | 2.38 PAC |
We offer optional equipment, alternative sizes, pressure ratings, materials and thread connections. Please contact us for more information.
