Venturi Junk Basket
FUNCTIONALITY
Wellbore CleanoutDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

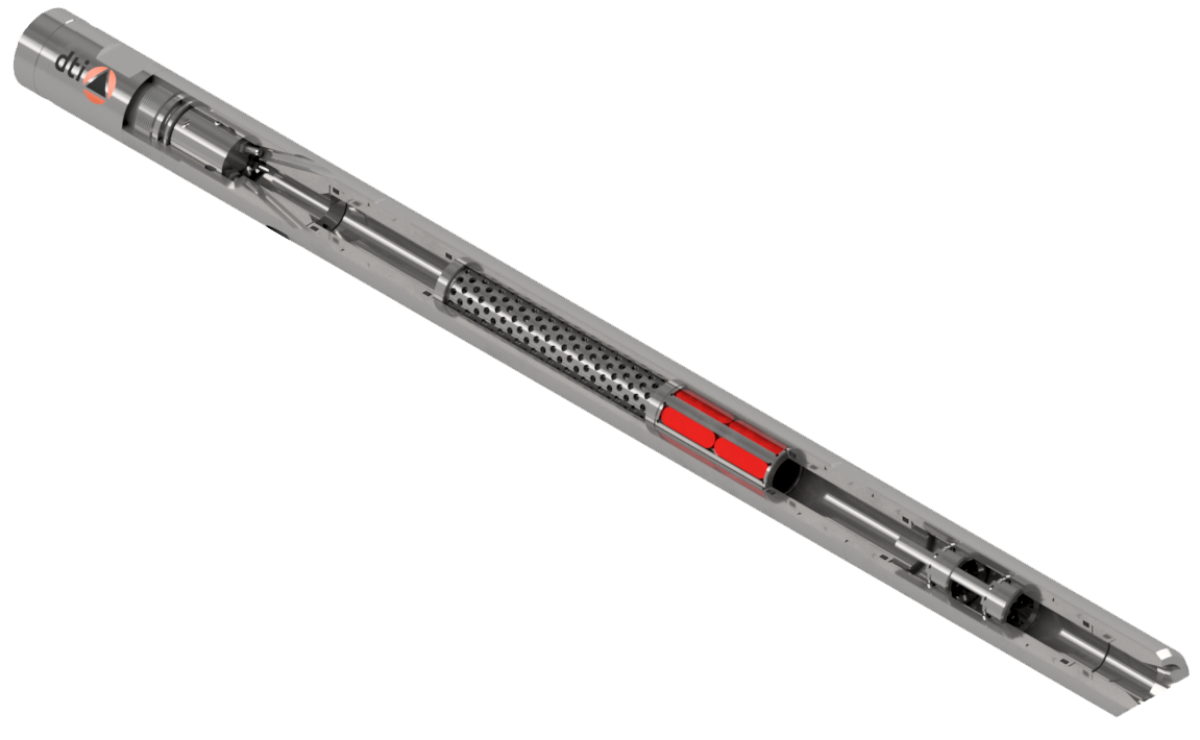

The DTI Venturi Junk Basket is used to collect downhole debris and retain it in the tool.
Circulating flow creates a suction effect within the tool which draws debris up inside the junk basket. Inside the tool a metal filter screen, magnets and a flapper junk shoe retain debris in place so it can be removed from the well.
Alternate circulating choke sizes are available to optimise the suction effect for a given flow rate. Extension tubes are also available to maximise the volume of debris that can be recovered in a single trip.
Features
& Benefits
- Remove debris from the well even if it cannot be circulated to surface
- Alternate nozzle sizes to maximise suction effect for a given flow rate
- Extension Tubes available to maximise the volume of debris that can be recovered in a single trip
| Part Number | Outside Diameter | Standard Connection | Length | Other |
|---|---|---|---|---|
| VJB169AA08 | 1.688" | 1.00 AMMT | 34.8" | 5 FT Extension Tube: VEXT169AA-5 |
| VJB175AA008 | 1.750" | 1.00 AMMT | 36.0" | 5 FT Extension Tube: VEXT175AA-5 |
| VJB206AA09 | 2.063" | 1.50 AMMT | 47.5" | 5 FT Extension Tube: VEXT206AA-5 |
| VJB212AA09 | 2.125" | 1.50 AMMT | 47.5" | 5 FT Extension Tube: VEXT212AA-5 |
| VJB263AA09 | 2.625" | 1.50 AMMT | 47.4" | 5 FT Extension Tube: VEXT263AA-5 |
| VJB288AA23 | 2.875" | 2.38 PAC | 50.5" | 5 FT Extension Tube: VEXT288AA-5 |
| VJB312AA23 | 3.125" | 2.38 PAC | 46.6" | 5 FT Extension Tube: VEXT312AA-5 |
We offer optional equipment, alternative sizes, materials and thread connections. Please contact us for more information.
