Hydraulic Knuckle Joint
FUNCTIONALITY
InterventionDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

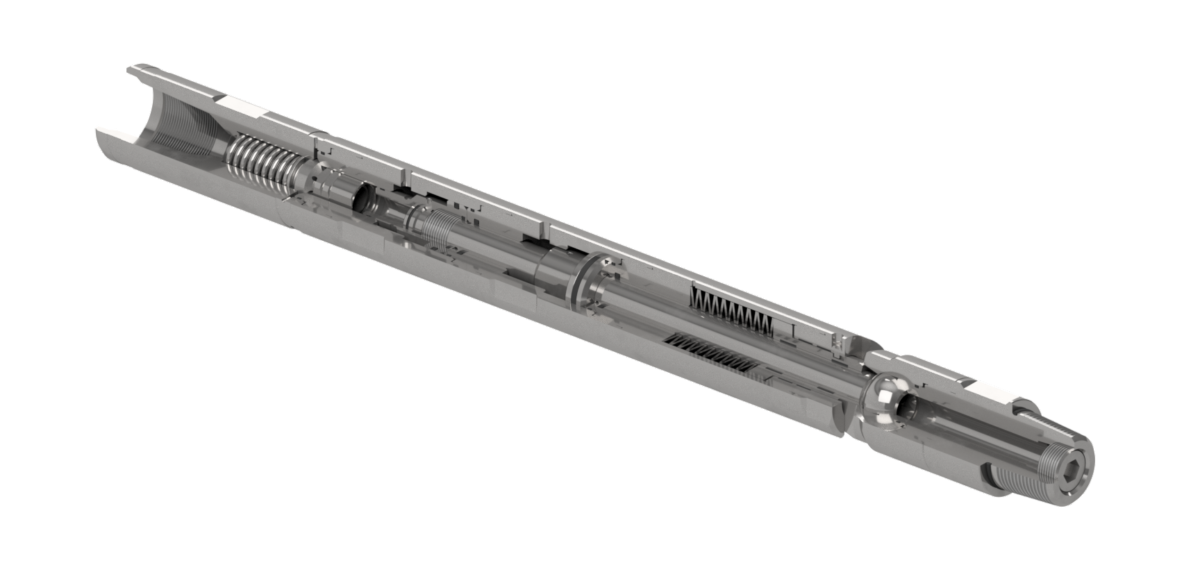

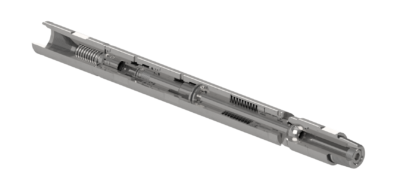

DTI's Hydraulic Knuckle Joint enables a controlled deviation of up to 15° to be applied to the bottom hole assembly for multi-lateral entry or for cleaning or jetting tunneling applications.
The Hydraulic Knuckle Joint is held in the straight position by high load springs. As the toolstring pressure increases the knuckle joint articulates and becomes rigidly inclined at a maximum 15°. An optional bleed port indicator provides a pressure signal to the operator that the joint is fully articulated.
Features
& Benefits
- Controllably incline the toolstring up to 15°
- Available with and without an optional bleed port indicator
- Used as part of the DTI Multi-Lateral Entry System to enter multiple laterals in a single CT trip
- Can be used for applications requiring an inclined BHA including fishing, jetting tunnelling, cleanouts and stimulation
- Fully sealed through bore
- Internal low friction seals
| Part Number | Outside Diameter | Inside Diameter | Standard Connection |
|---|---|---|---|
| CKJHA169AC08 | 1.688" | 0.25" | 1.00 AMMT |
| CKJHA212AC09 | 2.125" | 0.39" | 1.50 AMMT |
| CKJHA288AC23 | 2.875" | 0.75" | 2.375 PAC |
